Stepcraft UCCNC for Stepcraft OEM package V3.0
STEP12044
UCCNC for STEPCRAFT OEM Package V3.0 is a machine control software that has been adjusted and optimized especially for STEPCRAFT systems and tools.
UCCNC for STEPCRAFT OEM Package V3.0 is a machine control software that has been adjusted and optimized especially for STEPCRAFT systems and tools.
The optionally available Remote Control UCR201 was specifically designed for the use with UCCNC and Mach3 and allows for a comfortable and wireless setup of your STEPCRAFT CNC System.
Note: If you want to operate the Tool Length Sensor with UCCNC, please contact info@stepcraft-systems.com for an adjusted M31 makro.
Only available in English!
Key Features UCCNC:
RS274- und M codes execution
Up to 100 kHz operation
Exact stop and cont. velocity interpolations with highly configurable advanced preview function
G54 / G 59 tools offset and G52 / G92 temporary offset
3D toolpath viewer
Unlimited number of user text macros
Parametric programming using internal variables and programming mathematical expressions

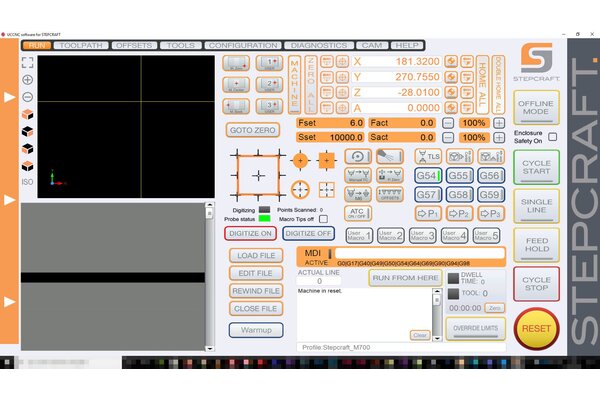

User interface customizable with screen set scripting
Fast communication with optimized buffering technique producing low button press to event execution time
Extremely low jitter on the step and direction signals for smooth, high speed and precise motors operation
Interface to computer is USB, interface to machine is parallel
Special Features of the OEM Version:
Approaching predefined machine points (front left, center machine table, center rear as well as three individual configurable position)
Incremental and absolute moving of the machine via coordinate display
Double home all of the machine's reference position (fast, slow) for increasing the precision of the machine zero point
Automatic support of the 3D touch probe, e.g. for workpiece edges identification, center point determination when working with various outer and inner contours
Function for center point determination of the 4th axis using the tool length sensor
Functions for easier operation of the automatic tool changer, such as manual exchange, automatic offset determination
Identifying contours for job preparation, e.g. to be able to mill a 2D engraving into a cylinder
Warm-up routine for all machine types
Activation / Deactivation of enclosure safety measures
System Requirements:
At least 1,8 GHz processor clock frequency
2 GB RAM (1 GB RAM for Windows XP)
1 GB harddrive space
Windows XP, 7, 8, 10 (both 32 und 64 bit versions)
Scope of Delivery:
1x USB stick with software, manuals and sample files
1x UC 100 controller
1x USB cable
| Forventet levering | 03.12.2024 |
|---|---|
| Merke | Stepcraft |
